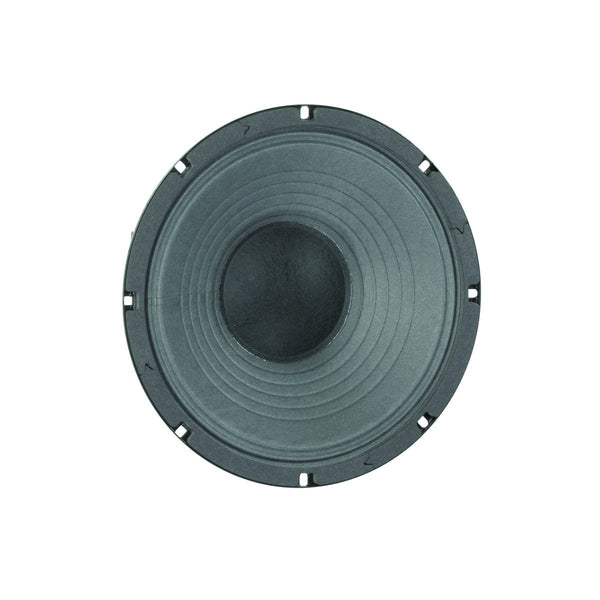

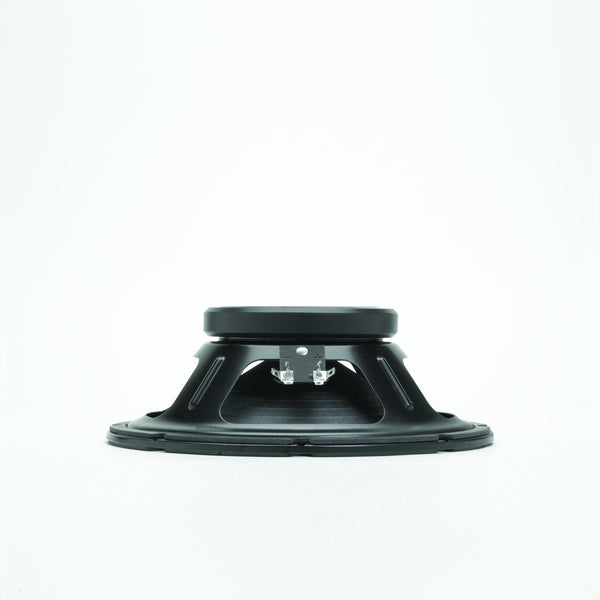

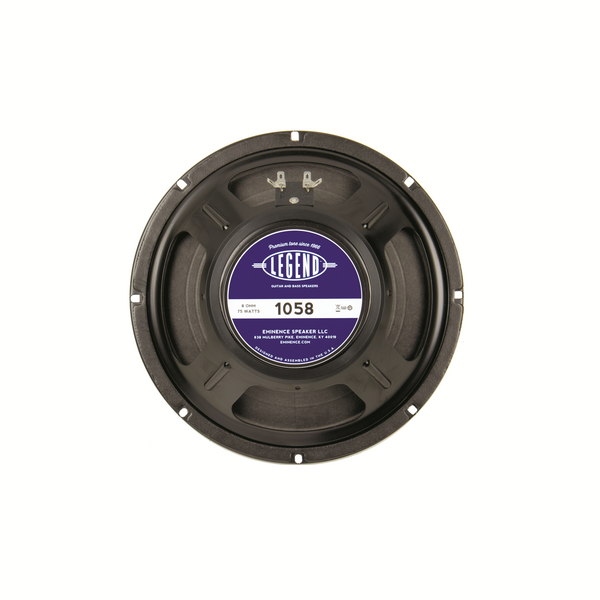

The Eminence Legend 1058 guitar speaker takes classic tone a step further. Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.
SPECIFICATION | |
Nominal Basket Diameter | 10", 254 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 75 W |
Resonance | 97 Hz |
Usable Frequency Range | 100 Hz - 5 kHz |
Sensitivity* | 98.7 dB |
Magnet Weight | 16 oz. |
Gap Height | 0.25", 6.4 mm |
Voice Coil Diameter | 1.5", 38 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 97 Hz |
DC Resistance (Re) | 7.49 Ω |
Coil Inductance (Le) | 0.56m H |
Mechanical Q (Qms) | 17.78 |
Electromagnetic Q (Qes) | 1.21 |
Total Q (Qts) | 1.13 |
Compliance Equivalent Volume (Vas) | 26.4 liters / 0.93 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 0 cc |
Mechanical Compliance of Suspension (Cms) | 0.16 mm/N |
BL Product (BL) | 8 T-M |
Diaphragm Mass Inc. Airload (MMs) | 17 grams |
Efficiency Bandwidth Product (EBP) | 80 |
Maximum Linear Excursion (Xmax) | 0 mm |
Surface Area of Cone (Sd) | 344.9 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.033 cu.ft. / 0.93 liters |
Overall Diameter | 10.11", 256.8 mm |
Baffle Hole Diameter | 9.13", 231.9 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.23", 5.8mm |
Mounting Holes B.C.D. | 9.6", 243.8mm |
Depth | 4.1", 104.1 mm |
Net Weight | 4.4 lbs, 2 kg |
Shipping Weight | 5.4 lbs, 2.45 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Non-vented core |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Solid composition felt dust cap |
