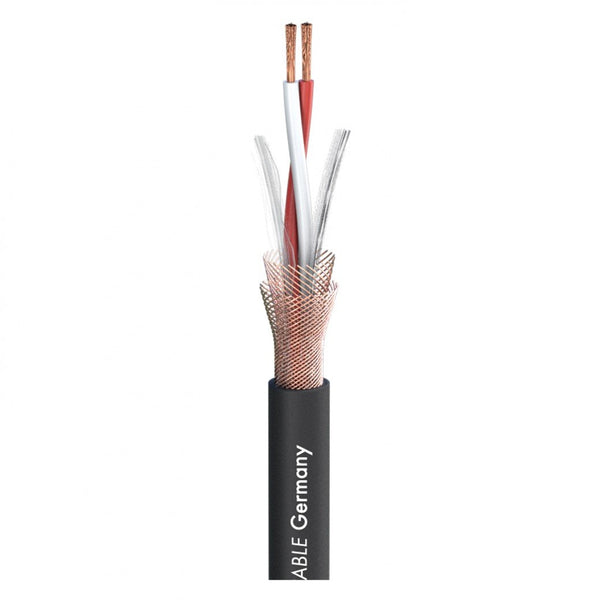

Sommer Cable SC-Symbiotic Microphnoe Cable Black - Price Per Metre

Regular price $8.60

Tax included.

Bet that...

you can hear this cable on the radio? We’ve added the SC-Symbiotic to our range to meet the demands of our ambitious broadcast and sound engineers. They appreciate the extremely dense dual helical mesh screen of oxygen-free copper, the small diameter and the impressive flexibility we have achieved with the extremely fine strand construction of 102 x 0,05 mm single litz wires. The SC-Symbiotic was custom-designed according to specifications set forth by broadcasting stations all over the world. Because of its minimal weight the SC-Symbiotic is also ideal for use with gooseneck microphones.

Advantages:

  • Designed according to German radio and BBC specifications
  • Extremely flexible due to the fine strand construction (102 x0,05 mm single litz wires)
  • Small diameter for inconspicuous installation
  • Perfectly shielded against RF interference

Application:

  • Professional radio, TV and studio technology
  • Permanent indoor and outdoor installation in public buildings
  • Ideal for use with gooseneck microphones



Name SC-Symbiotic
Properties Analog
Properties OFC oxygen free copper
Application area Mobile outdoor / indoor
Application area Installation
Application area Studio / Broadcast
Application Microphone Cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction (2LI2Y0,20mm²)YDDY
Jacket material PVC
Jacket Ø [mm] 5,20
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm²] 0,20
Inner conductor Ø (audio) [mm] 0,50
AWG (audio) 24
Shielding Double copper spiral, counter-rotating
Copper strands (audio) 102
Copper strand Ø (audio) [mm] 0,05
Conductor insulation material PE
Conductor insulation Ø [mm] 1,30
Weight per 1 m [g] 38
UV-resistant yes
Fire load per m [kWh] 0,13
Style variant round
Shielding factor [%] 100
Packing 100 m spool
Packing 500 m spool
Temperature min. [°C] -30
Temperature max. [°C] 70
Width [mm] 5,2
Height [mm] 5,2
Capac. cond./cond. per 1 m (audio) [pF] 95
Capacity wire/wire at 1 ft. (audio) [pF] 28,956
Capac. cond./shield. per 1 m (audio) [pF] 130
Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624
Insulation resist. per 1 km [GΩ] 0,2
Insulation resist. per 1000 feet [GΩ] 0,061
Insulation resist. per 1 km (audio) [GΩ] 0,2
Insulation resist. per 1000 feet (audio) [GΩ] 0,061
Conductor resistance per 1 km [Ω] 94
Conductor resistance per 1000 ft. [Ω] 28,6512
Shield. resistance per 1 km [Ω] 25
Shield. resistance per 1000 ft. [Ω] 7,62
EAN 4049371002677
