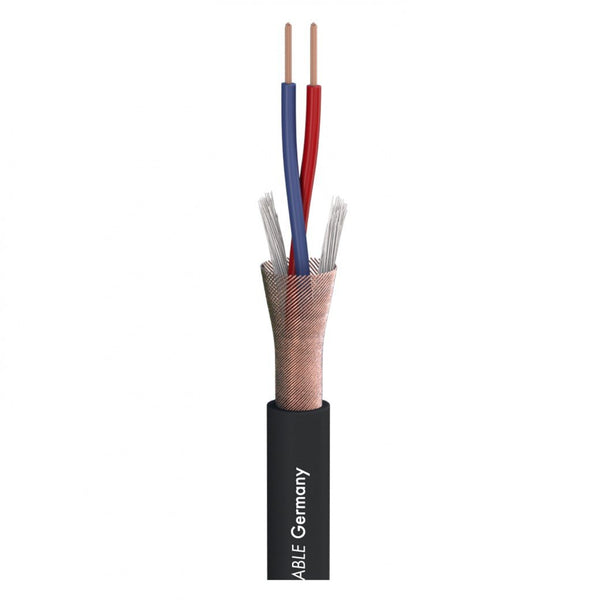

Sommer Cable Stage 22 Highflex Microphone Cable Black - Price Per Metre

Regular price $4.77

Tax included.

One thick coat...

will protect the interior against mechanical wear, such as pulling, tugging, kinking and knotting. For this reason we have fitted the STAGE 22 with a thick 6,40 mm outer jacket. The electrical data and the technical construction are also worth a look: Because of the fine, densely, stranded single wires, the STAGE 22 offers low capacitance and high bending cycles.
The shielding, made of bare copper wires, has a 99 % optical coverage (instead of the usual 85 %).
Thus, the STAGE 22 is the ideal cable for stage, home recording, rental companies and ELA-100V-applications technicians. The STAGE 22 is a very affordable cable with no need to compromise.

Advantages:

  • High transmission quality due to the usw of fine stranding
  • Very rugged owing to the thick, soft PVC jacket
  • Good shielding due to dence helical copper mesh screen
  • High flexibility makes it easy to reel
  • Affordable price

Application:

  • Stage application
  • Home recording



Name Stage 22 Highflex
Properties OFC oxygen free copper
Properties Analog
Application area Installation
Application area Mobile outdoor / indoor
Application area Stage / live
Application Microphone Cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction (2LI2Y0,22mm²)DY
Jacket material PVC
Jacket Ø [mm] 6,40
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm²] 0,22
Inner conductor Ø (audio) [mm] 0,53
AWG (audio) 24
Shielding Copper spiral shielding with 0.10 mm indiv. strands
Copper strands (audio) 28
Copper strand Ø (audio) [mm] 0,10
Weight per 1 m [g] 47
UV-resistant yes
Fire load per m [kWh] 0,22
Style variant round
Shielding factor [%] 99
Packing 100 m spool
Packing 500 m spool
Temperature min. [°C] -20
Temperature max. [°C] 70
Width [mm] 6,4
Height [mm] 6,4
Capac. cond./cond. per 1 m (audio) [pF] 68
Capacity wire/wire at 1 ft. (audio) [pF] 20,7264
Capac. cond./shield. per 1 m (audio) [pF] 130
Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624
Impedance [Ω] 100
Insulation resist. per 1 km [GΩ] 1
Insulation resist. per 1000 feet [GΩ] 0,3048
Insulation resist. per 1 km (audio) [GΩ] 1
Insulation resist. per 1000 feet (audio) [GΩ] 0,3048
Conductor resistance per 1 km [Ω] 87
Conductor resistance per 1000 ft. [Ω] 26,5176
Shield. resistance per 1 km [Ω] 30
Shield. resistance per 1000 ft. [Ω] 9,144
EAN 4049371001830
