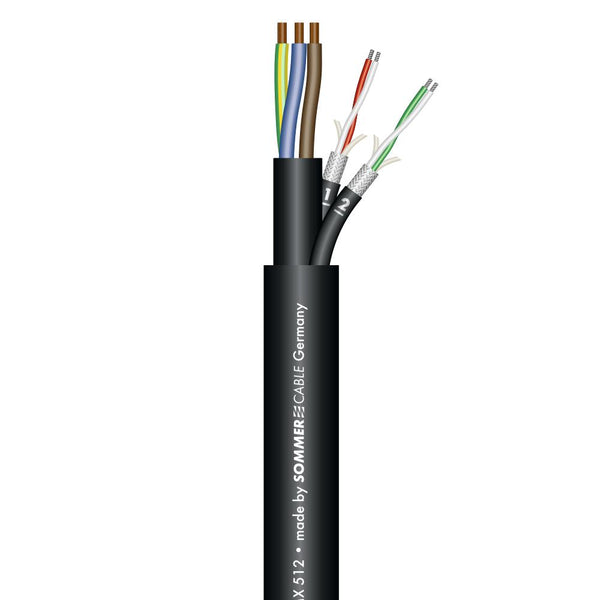

When the lights begin to dance...
Advantages:
- Parallel control for lighting boards through one cable via power line and DMX signal
- Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
- Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding
Application:
- Control line for DMX lighting consoles (wave impedance of 0 Ω)
- Analogue + digital audio multipair with power supply
| Name |
SC-Monolith 2 HV |
| Properties |
Analog |
| Properties |
Digital 110 Ω AES / EBU |
| Properties |
OFC oxygen free copper |
| Application area |
Mobile outdoor / indoor |
| Application area |
Stage / live |
| Application area |
Installation |
| Application area |
Studio / Broadcast |
| Application |
DMX & Power |
| Colour |
black |
| Colour detailed |
black |
| Signal transmission |
symmetrical |
| Construction |
[(3LIY2,5mm²)Y+ 02(2LI2Y0,25mm²)DY]VLY |
| Construction (power) |
(3LIY2,5mm²)Y |
| Construction (AES/EBU, DMX) |
02(2LI2Y0,25mm²)DY |
| Jacket material |
PVC |
| Jacket Ø [mm] |
16,00 |
| Jacket Ø (power) [mm] |
8,30 |
| Jacket Ø (AES/EBU, DMX) [mm] |
4,30 |
| Number of Channels (power) |
1 |
| Number of Channels (AES/EBU, DMX) |
2 |
| Inner conductor (power) |
3 |
| Inner conductor (AES/EBU, DMX) |
2 |
| Inner conductor (power) [mm²] |
2,50 |
| Inner conductor (AES/EBU, DMX) [mm²] |
0,25 |
| Inner conductor Ø (power) [mm] |
1,78 |
| Inner conductor Ø (AES/EBU, DMX) [mm] |
0,56 |
| AWG (power) |
13 |
| AWG (AES/EBU, DMX) |
23 |
| Shielding (AES/EBU, DMX) |
Braided mesh, tin-plated |
| Copper strands (power) |
48 |
| Copper strand Ø (power) [mm] |
0,25 |
| Copper strand Ø (AES/EBU, DMX) [mm] |
0,20 |
| Wire insulation material (power) |
PVC |
| Conductor insulation Ø [mm] |
0,00 |
| Conductor insulation Ø (power) [mm] |
3,10 |
| Weight per 1 m [g] |
313 |
| UV-resistant |
yes |
| Fire load per m [kWh] |
0,92 |
| Style variant |
round |
| Shielding factor [%] |
90 |
| Packing |
bulk stock |
| Temperature min. [°C] |
-30 |
| Temperature max. [°C] |
70 |
| Width [mm] |
16 |
| Height [mm] |
16 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] |
52 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] |
15,8496 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] |
89 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] |
27,1272 |
| Impedance [Ω] |
0 |
| Surge impedance (AES/EBU, DMX) [Ω] |
110 |
| Insulation resist. per 1 km [GΩ] |
0 |
| Insulation resist. per 1000 feet [GΩ] |
0 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] |
0,1 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] |
0,0305 |
| Conductor resistance per 1 km [Ω] |
0 |
| Conductor resistance per 1000 ft. [Ω] |
0 |
| Conductor resistance per 1 km (power) [Ω] |
80 |
| Conductor resistance per 1000 ft. (power) [Ω] |
24,384 |
| EAN |
4049371005418 |
|
