Sommer Cable Monocat Power 212 Power and DMX Signal Cable - Price Per Metre

$76.52

Tax included.

Cable abuse without punishment...

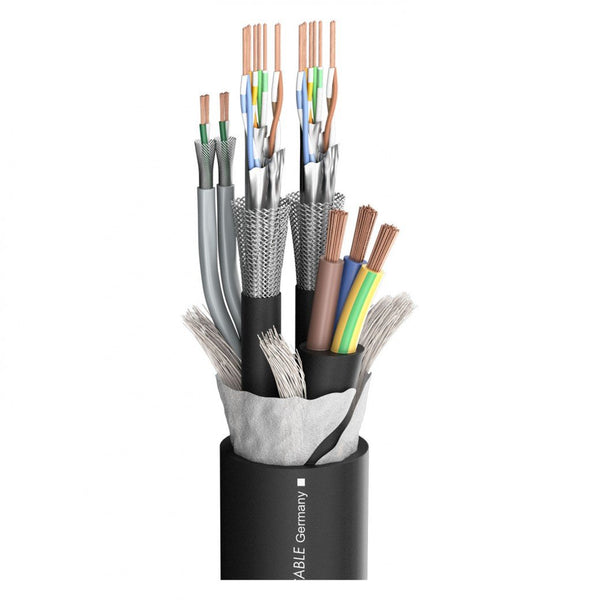

This combi line contains two CAT-cables in combination with two DMX-cables and insulated power cable. It s is equally suitable for permanent installations and mobile applications.

Advantages:

  • LAN signal transmission incl. mains supply in one cable
  • LAN cable also usable as an additional control line

Application:

  • Control of DMX lighting consoles
  • Mobile applications
  • Analogue + digital audio multipair with LAN and power supply
  • Permanent Installation



Name SC-Monocat Power 212
Properties Analog
Properties Digital 110 Ω AES / EBU
Properties OFC oxygen free copper
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application hybrid cable
Colour black
Colour detailed black
Signal transmission symmetrical
Construction [(3LI(9)Y3x2,5mm²)(11)Y+2x(4x(2LI2Yx0,57mm))(ST)CY+2x(2LI2Y0,25mm²)DY]Y
Construction (power) (3LI(9)Y3x2,5mm²)(11)Y
Construction (AES/EBU, DMX) 2x(2LI2Y0,25mm²)DY
Construction (network) 2x(4x(2x0,57mm))(ST)CY
Jacket material PVC
Jacket Ø [mm] 21,80
Number of Channels (power) 1
Number of Channels (AES/EBU, DMX) 2
Number of Channels (network) 2
Inner conductor (power) 3
Inner conductor (AES/EBU, DMX) 2
Inner conductor (network) 8
Inner conductor (power) [mm²] 2,50
Inner conductor (AES/EBU, DMX) [mm²] 0,25
Inner conductor Ø (network) [mm] 0,57
AWG (AES/EBU, DMX) 23
Shielding (AES/EBU, DMX) Copper spiral, tin-plated
Shielding (network) PiMF + tinned copper braid
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 470
UV-resistant yes
Fire load per m [kWh] 2,38
Style variant round
Shielding factor [%] 100
Packing bulk stock
CAT-Type CAT.7
Max. section length [m] 110
Temperature min. [°C] -20
Temperature max. [°C] 60
Width [mm] 21,8
Height [mm] 21,8
Capacity wire/wire at 1m (network) [pF] 44
Capacity wire/wire at 1 ft. (network) [pF] 13,4112
Impedance (network) [Ω] 100
Insulation resist. per 1km (power) [GΩ] 5
Insulation resist. per 1000 feet (power) [GΩ] 1,524
Test voltage [V] 2000
Nominal voltage (power) [V] 500
Operating voltage (power) [V] 300
EAN 4049371165143
