Sommer Cable SC-Monocat 110C - Price Per Metre

Regular price $41.99

Tax included.

Cable abuse without punishment...

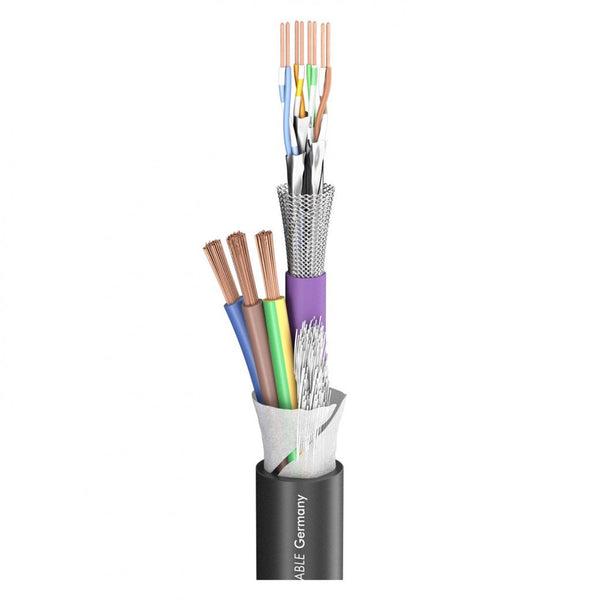

This combi line contains one CAT-cable in combination with an insulated
power cable. The SC-MONOCAT POWER Series is equally suitable for permanent
installations and mobile applications.

Advantages:

LAN signal transmission incl. mains supply in one cable
LAN cable also usable as an additional control line

Application:

Mobile applications

Name	SC-Monocat 110C
Properties	Analog
Properties	Digital 110 Ω AES / EBU
Properties	OFC oxygen free copper
Application area	Mobile outdoor / indoor
Application area	Stage / live
Application area	Installation
Application area	Studio / Broadcast
Application	hybrid cable
Colour	black
Colour detailed	black
Construction	[(3LIY3x2,5mm²)Y+1x(4x(2LI2Yx0,14mm²))(ST)CY]Y
Construction (power)	[(3LIY3x2,5mm²)Y
Construction (network)	1x(4x(2LI2Yx0,14mm²))(ST)CY]Y
Jacket material	PVC
Jacket Ø [mm]	13,80
Inner conductor (power)	3
Inner conductor (network)	8
Inner conductor (power) [mm²]	2,50
Inner conductor (network) [mm²]	0,14
Shielding (network)	AL / PT-foil + Copper braiding tin-plated
Copper strands (network)	7
Copper strand Ø (network) [mm]	0,16
Conductor insulation material	Foam / Skin-PE
Weight per 1 m [g]	254
UV-resistant	yes
Fire load per m [kWh]	0,77
Style variant	round
Shielding factor [%]	100
Packing	bulk stock
CAT-Type	CAT.7
Max. section length [m]	100
Temperature min. [°C]	-20
Temperature max. [°C]	70
Width [mm]	13,8
Height [mm]	13,8
Capacity wire/wire at 1m (network) [pF]	44
Capacity wire/wire at 1 ft. (network) [pF]	13,4112
Impedance (network) [Ω]	100
Insulation resist. per 1km (power) [GΩ]	5
Insulation resist. per 1000 feet (power) [GΩ]	1,524
Test voltage [V]	2000
Nominal voltage (power) [V]	300
Operating voltage (power) [V]	300
EAN	4049371050975
