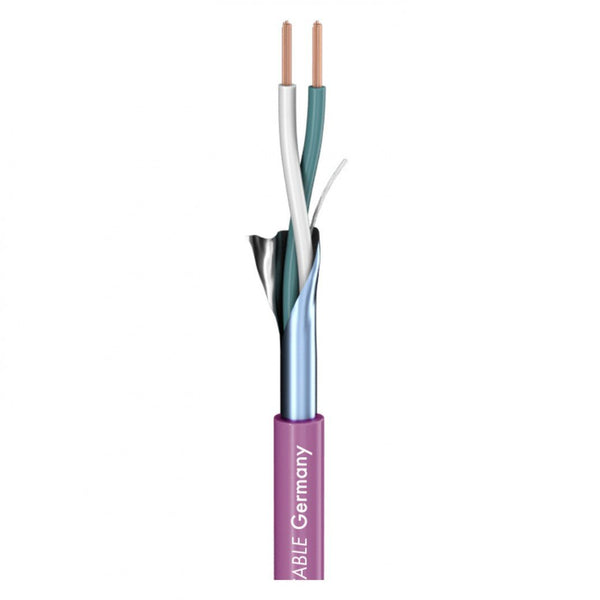

Sommer Cable SC-Isopod SO-F22 Patch Cable Purple - Price Per Metre

Regular price $2.60

Tax included.

The memory cable...



The cable with a memory... maximises efficiency. The inside of equipment racks often looks as if the cat has gotten into grandma?s knitting. Here we provide some organisation! The SC-ISOPOD SO-F is a 2-wire foil-shielded cable with a compact outer diameter of either 3.3 mm (SO-F22) or 4.2 mm (SO-F50). The cable is mostly used for inside wiring of audio and HiFi-components. It has a ?memory? effect and can be installed ?around corners? without any problems. The copper strands of the respective wire pairs are pre-twisted and can be stripped very easily. For easy connection the cable has an additional pre-twisted and tin-plated drain wire. It is shielded with AL/PT-foil, which automatically adheres to the jacket during stripping. The SC-ISOPOD SO-F50 has a larger wire diameter (2 x 0.50 mm?) and is preferable for use with crimp contacts. The SC-ISOPOD SO-F22D has a 110 Ohm surge impedance (Order-No. 500-0406).



Advantages:

  • Quick and easy to handle
  • Robust plastic jacket for long life
  • Easy to lay thanks to “memory effect”

Application:

  • Internal wiring of racks, audio and hifi components



Name SC-Isopod SO-F22
Properties Analog
Properties OFC oxygen free copper
Application area Installation
Application Patch cable
Colour purple
Colour detailed purple
Signal transmission symmetrical
Construction (2LI2Y0,22mm²)(ST)Y
Jacket material PVC
Jacket Ø [mm] 3,30
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm²] 0,22
Inner conductor Ø (audio) [mm] 0,53
AWG (audio) 24
Shielding AL / PT foil + AL / PT foil + filler strand, tin-plated
Copper strands (audio) 7
Copper strand Ø (audio) [mm] 0,20
Conductor insulation material PE
Conductor insulation Ø [mm] 1,12
Weight per 1 m [g] 16
Fire load per m [kWh] 0,05
Style variant round
Shielding factor [%] 100
Packing 200 m spool
Temperature min. [°C] -25
Temperature max. [°C] 70
Width [mm] 3,3
Height [mm] 3,3
Capac. cond./cond. per 1 m (audio) [pF] 74
Capacity wire/wire at 1 ft. (audio) [pF] 22,5552
Capac. cond./shield. per 1 m (audio) [pF] 143
Capacity wire/electic screen at 1 ft. (audio) [pF] 43,5864
Insulation resist. per 1 km [GΩ] 0,2
Insulation resist. per 1000 feet [GΩ] 0,061
Insulation resist. per 1 km (audio) [GΩ] 0,2
Insulation resist. per 1000 feet (audio) [GΩ] 0,061
Conductor resistance per 1 km [Ω] 88
Conductor resistance per 1000 ft. [Ω] 26,8224
Shield. resistance per 1 km [Ω] 75
Shield. resistance per 1000 ft. [Ω] 22,86
EAN 4049371004565
