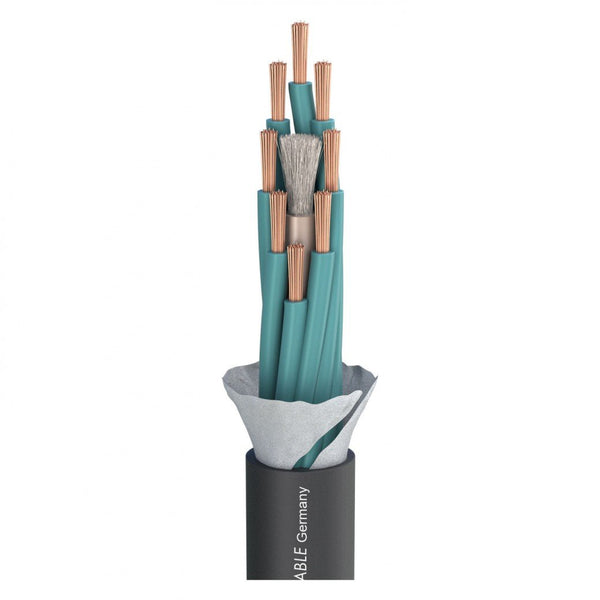

Sommer Cable SPM840 Elephant Robust Speaker Cable - Price Per Metre

Regular price $64.08

Tax included.

Especially for the tough stage routine...

we improved the jacket stability on the ELEPHANT series. Furthermore it is flexible, robust, tread-resistant, easy to reel and of course reusable time and again. Now the jacket surface is also smoother and thus easier to clean. And we have customised the outer diameter for an easier no-fuss handling with the common speaker multipins (CA-COM 8-pin, NL8, LKS19, EP5).

Advantages:

  • Loss-free transmission due to the special litz stranding technology
  • Highly flexible and stage-proof, easy to reel
  • Compatible with CA-COM 8-pin, NL8, LKS19, and EP5 connectors
  • Easy to use due to well-insulated, numbered wires

Application:

  • Professional PA systems



Name Elephant Robust SPM840
Properties OFC oxygen free copper
Properties Analog
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application Speaker Cable
Colour black
Colour detailed black
Construction (8LIY4,0mm²)Y
Jacket material PVC
Jacket Ø [mm] 18,50
Number of Channels (audio) 1
Inner conductor (audio) 8
Inner conductor (audio) [mm²] 4,00
Inner conductor Ø (audio) [mm] 2,26
AWG (audio) 11
Copper strands (audio) 128
Copper strand Ø (audio) [mm] 0,20
Conductor insulation Ø [mm] 3,75
Weight per 1 m [g] 570
UV-resistant yes
Fire load per m [kWh] 2,25
Style variant round
Packing bulk stock
Temperature min. [°C] -25
Temperature max. [°C] 70
Width [mm] 18,5
Height [mm] 18,5
Insulation resist. per 1 km [GΩ] 0,005
Insulation resist. per 1000 feet [GΩ] 0,0015
Insulation resist. per 1 km (audio) [GΩ] 0,005
Insulation resist. per 1000 feet (audio) [GΩ] 0,0015
Conductor resistance per 1 km [Ω] 4,5
Conductor resistance per 1000 ft. [Ω] 1,3716
Test voltage [V] 2000
EAN 4049371020510
Old article number 490-0251-840
