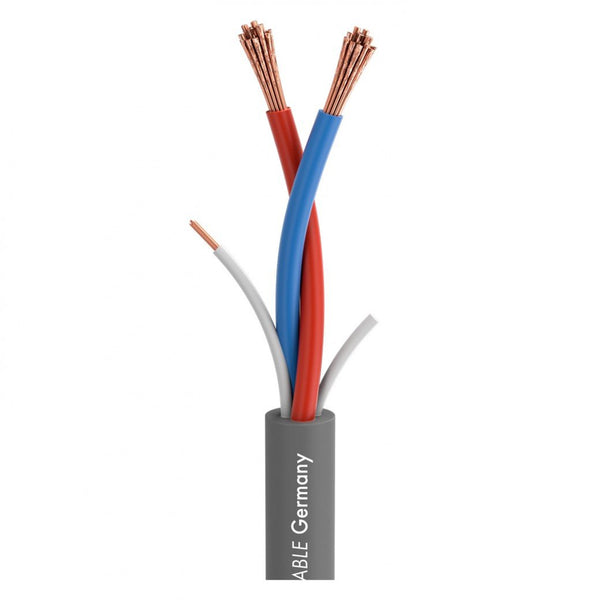

Sommer Cable SC-Eclipse SPQ240 MKII Speaker Cable - Price Per Metre

Regular price $20.08

Tax included.

Up and down, time and again...

This speaker cable will always return to its normal position. Even with severe traffic violations – when rolled over by a flight case – it will always stand its ground. As a special feature we have fitted the cable with a viscose filled PVC smoother and a 0.50 mm² sense line. This cable can withstand even the toughest stage demands.

This speaker cable has fine and tightly stranded OFC litz wires like they are normalle found only in exclusive top-class hifi cables. For optimum conductivity we have grouped the copper litz wires into complex bundles. Which is why this cable has not only an incredible flexibility, but also an outstanding transmission quality. This can be noticed also with longer cable runs by clean and clear highs, dynamic mids and
increased bass punch.

Advantages:

  • Loss-free signal transmission even over long distances due to the use of tightly
    stranded copper litz wires
  • Highly flexible due to the use of a rubberlike PVC jacket
  • Extremely robust and dependable

Application:

  • PA/sound reinforcement systems
  • For fixed installation
  • Top-quality hifi connections



Name SC-Eclipse SPQ240 MKII
Properties Analog
Properties OFC oxygen free copper
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application area Stage / live
Application area Installation
Application Speaker Cable
Colour grey
Colour detailed grey
Construction (2LIY4,0mm²+0,5 mm²)Y
Jacket material PVC
Jacket Ø [mm] 9,50
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm²] 4,00
Inner conductor Ø (audio) [mm] 2,26
AWG (audio) 11
Copper strands (audio) 224
Copper strand Ø (audio) [mm] 0,15
Conductor insulation material PVC
Conductor insulation Ø [mm] 3,60
Weight per 1 m [g] 165
Fire load per m [kWh] 0,46
Style variant round
Packing 200 m spool
Packing 100 m spool
Temperature min. [°C] -30
Temperature max. [°C] 70
Width [mm] 9,5
Height [mm] 9,5
Capac. cond./cond. per 1 m (audio) [pF] 136
Capacity wire/wire at 1 ft. (audio) [pF] 41,4528
Insulation resist. per 1 km [GΩ] 0,005
Insulation resist. per 1000 feet [GΩ] 0,0015
Insulation resist. per 1 km (audio) [GΩ] 0,005
Insulation resist. per 1000 feet (audio) [GΩ] 0,0015
Conductor resistance per 1 km [Ω] 4,5
Conductor resistance per 1000 ft. [Ω] 1,3716
EAN 4049371002202
