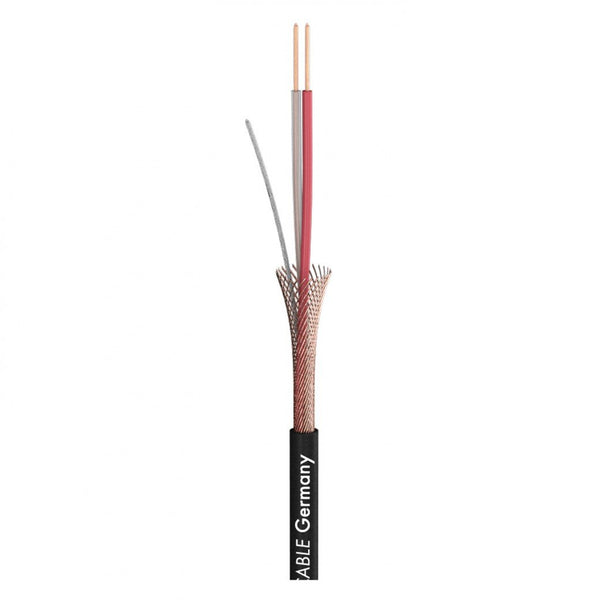

with its 2.6 mm diameter fits in wherever there is little room. We originally developed the SC-CICADA SO-D14 as a high quality cable for the inside wiring of racks and audio equipment, but being tested extensively by various manufacturers of microphones they very quickly relised the excellent technical and electrical values of the cable. In the meantime the SC-CICADA can be found on many clip and ear microphones, head sets, and speaker units. Especially appreciated is the extreme flexibility, the dense spiral shielding, and the pre-twisted and tin-plated drain wire on the SC-CICADA SO-D14, which gives the cable additional protection against bending and tearing. If you are a manufacturer of high quality audio components, then wire your units with this cable! The low noise and the shielding will amaze you! Available with a PUR-jacket (resistant to notching and cold temperatures!)
Advantages:
- Highly flexible because of its fine single litz design
- Easy to handle owing to the extra drain wire (0.22 mm²)
- Superb shielding due to the tight helical mesh screen with 95 % coverage
- Durable and notch-resistant due to the sturdy PUR jacket
Application:
- Interior wiring of mixing consoles, racks, and other audio
components
- Flexible cable for clip-on microphones, earphones, speaker units, etc.
- Assembly of adapter cable
| Name |
SC-Cicada SO-D14 |
| Properties |
OFC oxygen free copper |
| Properties |
PUR |
| Properties |
Analog |
| Application area |
Installation |
| Application |
Patch & Microphone Cable |
| Colour |
black |
| Colour detailed |
black |
| Signal transmission |
symmetrical |
| Construction |
(2LI2Y0,14mm²)DY |
| Jacket material |
PUR Master-Blend |
| Jacket Ø [mm] |
2,60 |
| Number of Channels (audio) |
1 |
| Inner conductor (audio) |
2 |
| Inner conductor (audio) [mm²] |
0,14 |
| Inner conductor Ø (audio) [mm] |
0,42 |
| AWG (audio) |
26 |
| Shielding |
Copper spiral shielding + filler strand, tin-plated (0.22 mm²) |
| Copper strands (audio) |
18 |
| Copper strand Ø (audio) [mm] |
0,10 |
| Conductor insulation material |
PE |
| Conductor insulation Ø [mm] |
0,90 |
| Weight per 1 m [g] |
13 |
| UV-resistant |
yes |
| Fire load per m [kWh] |
0,08 |
| Style variant |
round |
| Shielding factor [%] |
95 |
| Packing |
100 m spool |
| Temperature min. [°C] |
-30 |
| Temperature max. [°C] |
70 |
| Width [mm] |
2,6 |
| Height [mm] |
2,6 |
| Capac. cond./cond. per 1 m (audio) [pF] |
65 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
19,812 |
| Capac. cond./shield. per 1 m (audio) [pF] |
120 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] |
36,576 |
| Insulation resist. per 1 km [GΩ] |
1 |
| Insulation resist. per 1000 feet [GΩ] |
0,3048 |
| Insulation resist. per 1 km (audio) [GΩ] |
1 |
| Insulation resist. per 1000 feet (audio) [GΩ] |
0,3048 |
| Conductor resistance per 1 km [Ω] |
148 |
| Conductor resistance per 1000 ft. [Ω] |
45,1104 |
| Shield. resistance per 1 km [Ω] |
30 |
| Shield. resistance per 1000 ft. [Ω] |
9,144 |
| EAN |
4049371002066 |
|
