Reversible USB 3.0 gender changer (type A and B), Nickel D-housing

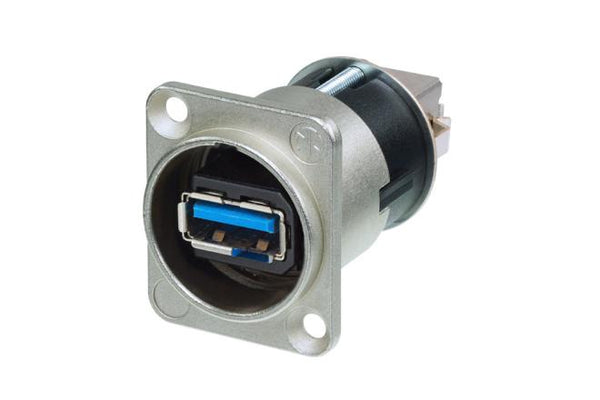

The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.
Features & Benefits
- USB 3.0 feedthrough adapter
- Reversible insert offering type A or B on front or rear end
- Standard D-shape housing
- Removable screen for chassis grounding
- Meets USB 3.0 specifications
USB 3.0 Performance
To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.
Gender Changeable
Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.
Optimized Ground Connection
An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.
Cable lengths
To ensure an error-free data transmission it is essential to use an appropriate cable with correct length. The table below lists the maximum cable length according to the wire gauge (AWG) of the used USB 3.0 cable.
Wire gauge | Cable length |
AWG 22 | 1.75 m |
AWG 24 | 1.0 m |
AWG 26 | 0.6 m |
AWG 28 |
0.35 m |
Technical Information
Product | |
Title | NAUSB3 |
Connection Type | Adapter |
Gender | female |
Electrical | |
Reading / Writing speed | >200 MB/s |
Mechanical | |
Wiresize | |
Mounting direction | Front mounting |
Chassis shape | D |
Lifetime | > 1000 mating cycles |
Material | |
Contact plating | Au |
Contacts | Brass (CuZn39Pb3) |
Insert | PBTP 15 % GR |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Environmental | |
Flammability | UL 94 V-0 |
Standard compliance | USB 3.0 specifications |
Temperature range | -25 °C to +85 °C |
