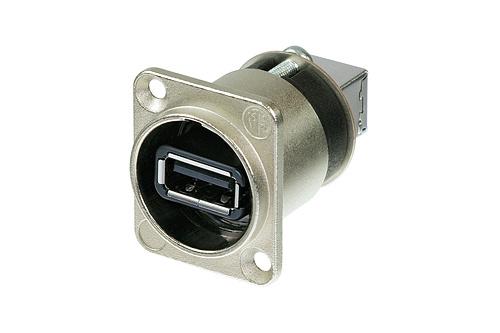

Reversible USB 2.0 gender changer (type A and B), Nickel D-housing.
Due to the rising digitisation the interface problems between audio/video networks, IT equipment, MP3 camcorders, etc. increase. A rugged solution is needed.
Neutrik's reversible USB gender changer, mounted in the standardized D-shape housing, and the rugged patch cables solve this problem.
Features & Benefits
- Ideal for audio networking and integration of computerbased equipment into audio systems
- Dust and water resistant acc. to IP65 safety standard in combination with NKUSB-*
- USB 2.0 gender changer type A-B (B-A)
- Reversible insert offering type A or B on front or rear end
- Universally accepted standard D-shape housing
- Removable screen to chassis grounding:
Technical Information
| Title |
NAUSB-W |
| Connection Type |
Adapter |
| Gender |
female |
| Wiresize |
|
| Mounting direction |
Front mounting |
| Chassis shape |
D |
| Lifetime |
> 1000 mating cycles |
| Contact plating |
Au |
| Contacts |
Brass (CuZn39Pb3) |
| Insert |
PBTP 15 % GR |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Nickel |
| Flammability |
UL 94 V-0 |
| Standard compliance |
USB 2.0 specifications |
| Temperature range |
-25 °C to +85 °C |
