Optogate PB-07 Automatic Mic Gate for Fixing On Mic Stand

Regular price $329.98

Tax included.

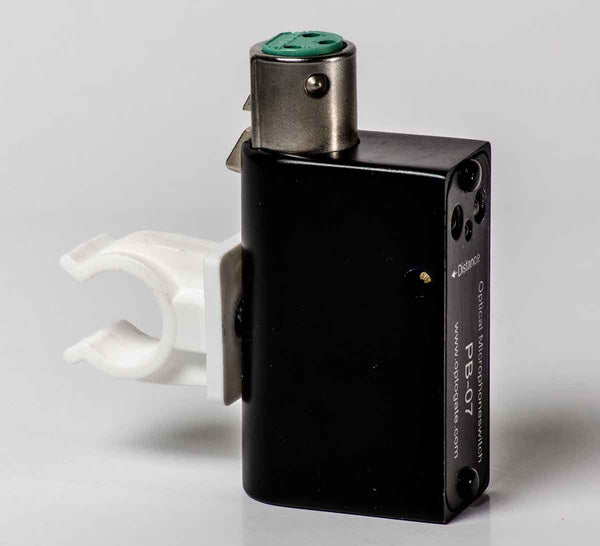

Optogate PB-07 After taking into account our customers suggestions we developed the PB-07. On this model the sensor is on the flat side. Like the other models the Pb-07 will switch on the microphone if someone is in front of the mic. A red status LED indicates if the microphone is switched on. The PB-07 will switch off the microphone if nobody is in front of the mic. The distance can be adjusted between 15cm and 120cm with the help of Trim Pot. On the back is a 4mm threaded hole for the possibility to mount a clip on the PB-07. In this case the PB-07 can be installed on a mic stand and will disappear behind of the stand. The PB-07 can be connected to a gooseneck microphone as well. The PB-07 works with 48 Volt phantom power and the phantom power passes on the microphone. Optogates are the best and easiest solution for the most common problems in live applications. It eleminates unwanted backgound noise of other instruments into unused microphones on stage. So, the clarity of the mix and the dynamics will be increased due to less phase cancellation and backgound noise. It reduces the possibility of feedback from unused mics. Just plug & Play... Dimensions PB-07: 68mm length x 35mm height x 21mm width Connectors: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) Case construction: Aircraft-aluminium, black galvanizedl Distance Adjustable between 15 - 120 cm (depending of the type of reflection surface) Angle + / - 10 ? Switching noise: Immeasurable Frequency responses 0 Hz - 30kHz, - 3 dB at 150 Ohm mic impedance Signal noise ratio: -114 dB / -122 dB, Mic on / off, 150 Ohm Mic. Distortion < 0,05 % at 100mV Delaytime mic on: < 0,2 Sec Delaytime mic off: ca. 1 Sec Attenuation "mic on": 0 dB Attenuation "mic off": 42 dB at 150 Ohm micimpedanz Usuable mic. types: All type of dynamic - and phantom powered mics. up to 10 mA current consumption Maximum input level: 3 dB (1,1V) Operating temperature: 0 - 55 Grad Celsius Background light range: 0 - 20000 Lux daylight und 0 - 12000 Lux electric bulblight Distance measurement: Active infrared reflection principle with 3 bit code Power: 24-48 V Phantompower (passes phantompower to the microphone) Current consumption: ca. 3.7 mA
