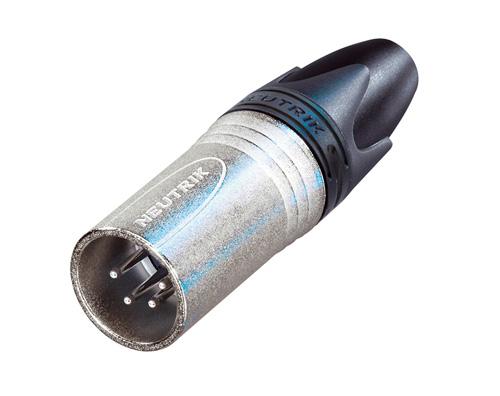

4 pole male cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Technical Information
| Title |
NC4MXX |
| Connection Type |
XLR |
| Gender |
male |
| Capacitance between contacts |
≤ 7 pF |
| Contact resistance |
≤ 3 mΩ |
| Dielectric strength |
1,5 kVdc |
| Insulation resistance |
> 10 GΩ (initial) |
| Rated current per contact |
10 A |
| Rated voltage |
< 50 V |
| Cable O.D. |
3.5 - 8.0 mm |
| Insertion force |
≤ 20 N |
| Withdrawal force |
≤ 20 N |
| Lifetime |
> 1000 mating cycles |
| Wiresize |
max. 1.5 mm² |
| Wiresize |
max. 16 AWG |
| Wiring |
Solder contacts |
| Locking device |
Latch lock |
| Boot |
Polyurethan |
| Contact plating |
2 µm Ag over 2 µm Ni |
| Contacts |
Brass (CuZn39Pb3) |
| Insert |
Polyamide (PA 6.6 30 % GR) |
| Locking element |
Zinc diecast (ZnAl4Cu1) |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Nickel |
| Strain relief |
Polyacetal (POM) |
| Flammability |
UL 94 HB |
| Standard compliance |
IEC 61076-2-103 |
| Protection class |
IP 40 |
| Solderability |
Complies with IEC 68-2-20 |
| Temperature range |
-30 °C to +80 °C |
