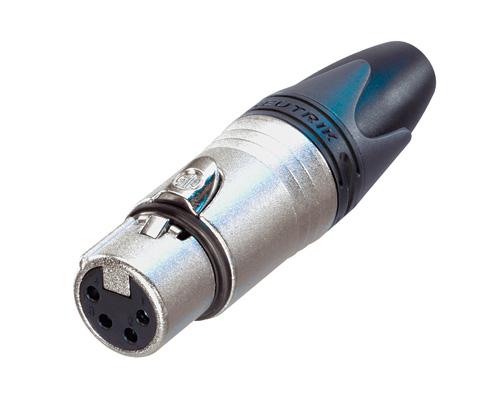

4 pole female cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features & Benefits
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Information
Title |
NC4FXX |
Connection Type |
XLR |
Gender |
female |
Capacitance between contacts |
≤ 7 pF |
Contact resistance |
≤ 3 mΩ |
Dielectric strength |
1,5 kVdc |
Insulation resistance |
> 10 GΩ (initial) |
Rated current per contact |
10 A |
Rated voltage |
< 50 V |
Cable O.D. |
3.5 - 8.0 mm |
Insertion force |
≤ 20 N |
Withdrawal force |
≤ 20 N |
Lifetime |
> 1000 mating cycles |
Wiresize |
max. 1.5 mm² |
Wiresize |
max. 16 AWG |
Wiring |
Solder contacts |
Locking device |
Latch lock |
Boot |
Polyurethan |
Contact plating |
2 µm Ag over 2 µm Ni |
Contacts |
Brass (CuZn39Pb3) |
Insert |
Polyamide (PA 6.6 30 % GR) |
Locking element |
Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) |
Shell |
Zinc diecast (ZnAl4Cu1) |
Shell plating |
Nickel |
Strain relief |
Polyacetal (POM) |
Flammability |
UL 94 HB |
Standard compliance |
IEC 61076-2-103 |
Protection class |
IP 40 |
Solderability |
Complies with IEC 68-2-20 |
Temperature range |
-30 °C to +80 °C |
