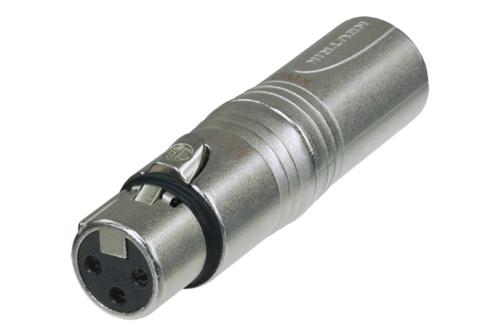

3 pole XLR female - 5 pole XLR male for lighting (DMX) applications.
Features & Benefits
- Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
- Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability
Technical Information
| Title |
NA3F5M |
| Connection Type |
Adapter |
| Contact resistance |
≤ 3 mΩ |
| Dielectric strength |
1,5 kVdc |
| Insulation resistance |
> 2 GΩ |
| Rated current per contact |
3 A |
| Insertion force |
< 20 N |
| Withdrawal force |
< 20 N |
| Lifetime |
> 1000 mating cycles |
| Wiresize |
|
| Locking device |
Latch lock |
| Contact plating |
2 µm Ag |
| Contacts |
Bronze (CuSn6) (female) |
| Insert |
Polyamide (PA 6.6 30 % GR) |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Nickel |
| Temperature range |
-30 °C to +80 °C |
