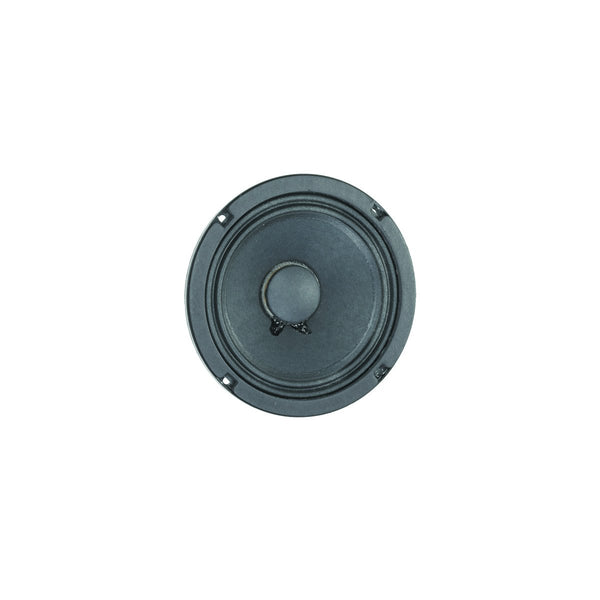

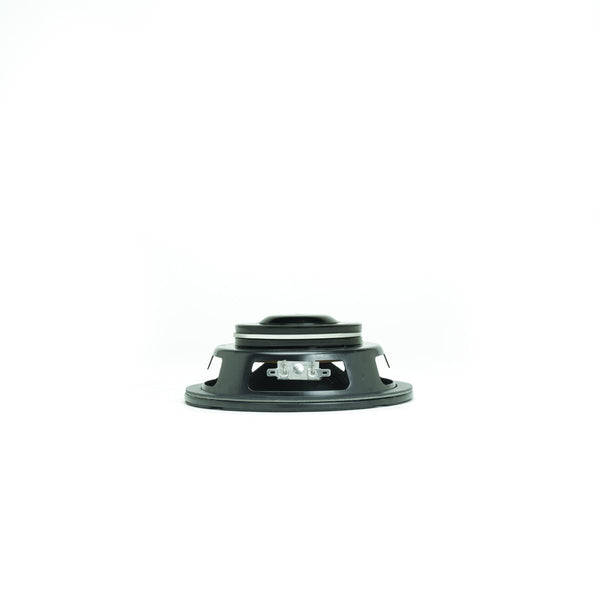

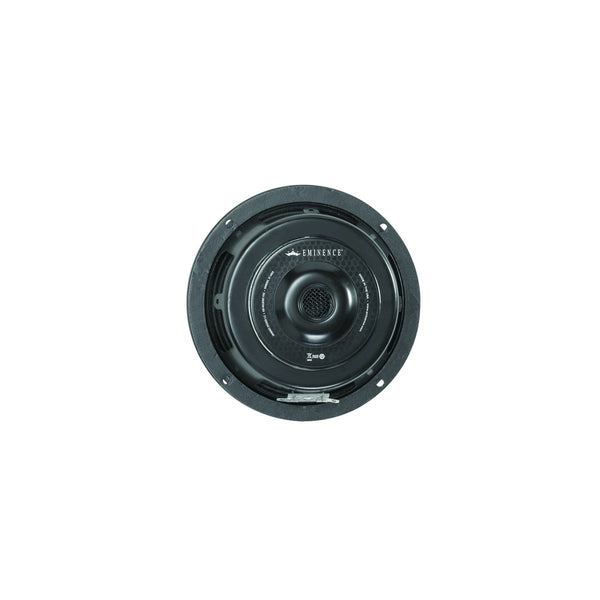

Lightweight pro audio mid/bass driver. For sealed, vented, or infinite baffle applications.
| SPECIFICATION | |
| Nominal Basket Diameter | 6", 165 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 200 W |
| Watts | 100 W |
| Resonance | 126 Hz |
| Usable Frequency Range | 100 Hz - 5.5 kHz |
| Sensitivity* | 94 dB |
| Magnet Weight | 4 oz. |
| Gap Height | 0.25", 6.4 mm |
| Voice Coil Diameter | 1.5", 38 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 126 Hz |
| DC Resistance (Re) | 7.3 Ω |
| Coil Inductance (Le) | 0.53m H |
| Mechanical Q (Qms) | 6.51 |
| Electromagnetic Q (Qes) | 0.61 |
| Total Q (Qts) | 0.56 |
| Compliance Equivalent Volume (Vas) | 4.92 liters / 0.17 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 46 cc |
| Mechanical Compliance of Suspension (Cms) | 0.21 mm/N |
| BL Product (BL) | 8.45 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 8 grams |
| Efficiency Bandwidth Product (EBP) | 205 |
| Maximum Linear Excursion (Xmax) | 3.5 mm |
| Surface Area of Cone (Sd) | 129.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 4 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | 2.83-566 liters / 0.1-20 cu.ft. |
| Vented | 3-16 liters / 0.1-0.6 cu.ft. |
| Driver Volume Displaced | 0.01 cu.ft. / 0.27 liters |
| Overall Diameter | 6.59", 167.4 mm |
| Baffle Hole Diameter | 5.69", 144.5 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.23", 5.8mm |
| Mounting Holes B.C.D. | 6.06", 153.9mm |
| Depth | 2.4", 61 mm |
| Net Weight | 2.2 lbs, 1 kg |
| Shipping Weight | 2.9 lbs, 1.32 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Round copper voice coil |
| Coil Former | Kapton former |
| Magnet Composition | Neodymium magnet |
| Core Details | Vented and Extended core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Treated paper dust cap |
