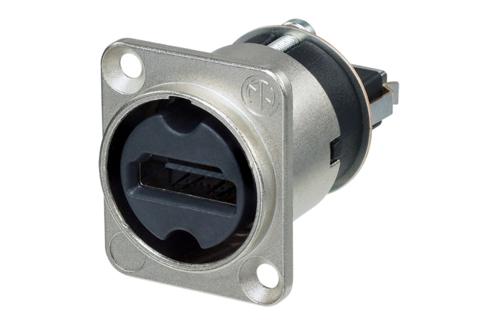

HDMI feedthrough adapter, D-shape housing
Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.
Features & Benefits
- To transmit any digital TV and PC video format including high-definition video (HDTV).
- HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends
- Dust and water resistant acc. to IP65 safety standard in combination with NKHDMI-*
- Universally accepted standard D-shape housing
- Removable screen to chassis grounding:
Technical Information
| Title |
NAHDMI-W |
| Connection Type |
Adapter |
| Gender |
female |
| Wiresize |
|
| Mounting direction |
Front mounting |
| Chassis shape |
D |
| Lifetime |
> 1000 mating cycles |
| Contact plating |
Au |
| Contacts |
Brass (CuZn39Pb3) |
| Insert |
PBT |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Nickel |
| Flammability |
UL 94 V-0 |
| Standard compliance |
HDMI 2.0 specifications (in combination with Neutrik HDMI cable up to 5 m cable length; in combinati |
| Temperature range |
-25 °C to +85 °C |
