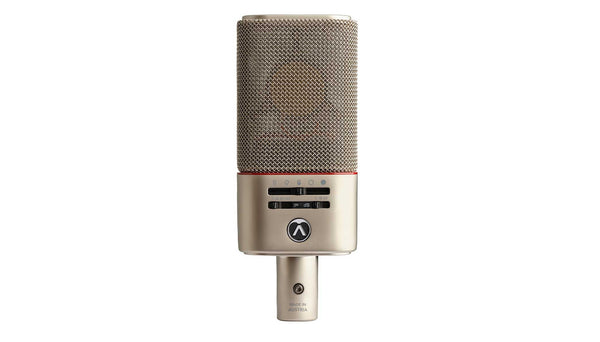

Large diaphragm Condenser Microphone with Multiple Polar Patterns
Directional characteristics: figure 8, supercardioid, cardioid, omnidirectional & custom programmable
Frequency range: 20 Hz - 20 kHz
Sensitivity (all directions): 13mV/Pa
Equivalent noise level: 9 dB SPL (A)
Max SPL: 148 dB SPL (158 dB SPL)
Switchable pad: -10 dB, -20 dB
Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
Impedance: 275 O (symmetrical)
Load impedance: > 1 kO
Supply voltage: 48 V (< 4mA, typical 2.1mA)
Main Connector: XLR 3 pin
Connector for back membrane or remote: Mini XLR 5 pin
Dimensions: 157 x 63 x 35 mm
Weight: 360 g
Engineered and manufactured in Austria, The OC818 is Austrian Audioâs premier, professional, large diaphragm microphone. Its high sensitivity, low self noise and ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, ANY OC818 is match paired with ANY other OC818, and when in cardioid mode, it can also be match paired with ANY OC18, its affordable smaller brother OC818 is available in âStudioâ or âLiveâ packages:
OC818 Studio Set contains: 1x OC818 microphone, 1x OCS Spider Mount Suspension, 1x OCW8 Foam Windshield, 1x OCH8 Mic Clip, 1x OCC8 Mini XLR Cable + Cable clip, Protective Carry Case.
