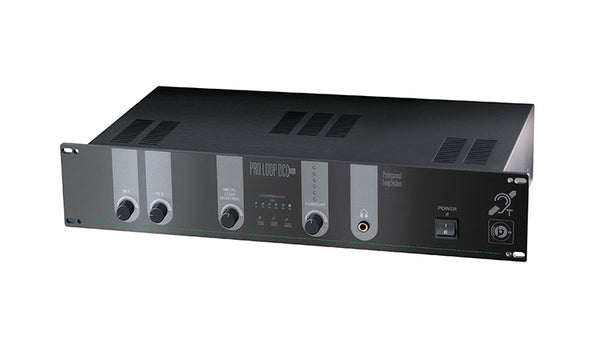

AUDIOropa INDUCTION Loop Amplifier for up to 1000m²

AUDIOropa INDUCTION Loop Amplifier for up to 1000m²

Regular price
$3,990.00
Sale price
$3,990.00
Unit price
per
Tax included.

Loop amplifier – also for low overspill installations

Simple and safe handling
High output current: 12 A RMS
Main transfer switch 115 / 230 V AC
Active protection against short circuits
Two XLR(F)-sockets, one configurable as
Microphone input (amplifier setting, phantom feed)
or
LINE-input (amplifier setting)
100V-priority input for the connection of ELA systems
Separate treble/base regulation
Display of loop current
3.5mm-headset socket to monitor audio signals
Control to reduce metal losses
Suitable for the set-up of low overspill systems
19” rack casing

The PROLOOP DCCplus is designed for rooms of up to 1000 m² with loop signals and is the ideal solution for events and meeting venues.
We gave the PROLOOP DCCplus a complete overhaul and the revised model for 2015 is better than ever!
Each of the two XLR(F) inputs can be configured as LINE (symmetrical) or as microphone input (asymmetrical).
The equipment provides an output of up to 12 A RMS and guarantees secure audio transmission. The Automatic Gain Control hereby ensures good sound reproduction at constant field strength and high stability.

For standard and low overspill supply

Beyond the standard application the PROLOOP DCCplus is also suitable for the realisation of low overspill loop systems. This requires two PROLOOP DCCplus devices.

PROLOOP DCCplus Technical data
Main connection 230 V AC, 45-60 Hz, 150 Watt
Passive protection Fuse 1.5 A
Surface coverage 1000 m² acc. to IEC 60118-4

Induction loop output
Max. current 12 A RMS, 34 A from peak to peak, 1-5 ms, 1 kHz
Max. voltage 32 V RMS, 45 V peak
Output-AGC Keeps the audio signal level constant within the connected loop. AGC reaction time: Sinus -10 db at 8 msec to 2 sec.
Frequency range 100 – 5.000 Hz (±3 dB)
Distortion < 1 % at nominal output, 1KHz
Cable connection 2 screw terminals on the reverse of the device

Outputs
Slave LINE OUT 0° / 90° Phase shift adjustable, 6.3 mm jack plug

Inputs
IN 1 XLR (F) socket,
MIC IN (symmetric, sensitivity 1 mV )
IN 2 XLR(F) socket, can be switched as a microphone or line input
100-V priority input for connection to PA systems
Slave SLAVE-IN (6,3 mm jack plug)

AGC
Dynamics > 36 dB

Control and display
Induction loop setting Rotary knob
Input level IN 1 and IN 2 can be adjusted separately
Display Main connection: 1 green LED
AGC / Compression
Input level 6 differently coloured LEDs
Current: 6 differently coloured LEDs

Induction loop monitoring
1 headphone output

Housing
Dimensions 90 x 430 x 270 mm (H x W x D),
19-inch rack (2 height units)
Attachment 4 attachment points on the front plate
for installation in 19-inch rack
Colour black
Weight 7,8 kg
