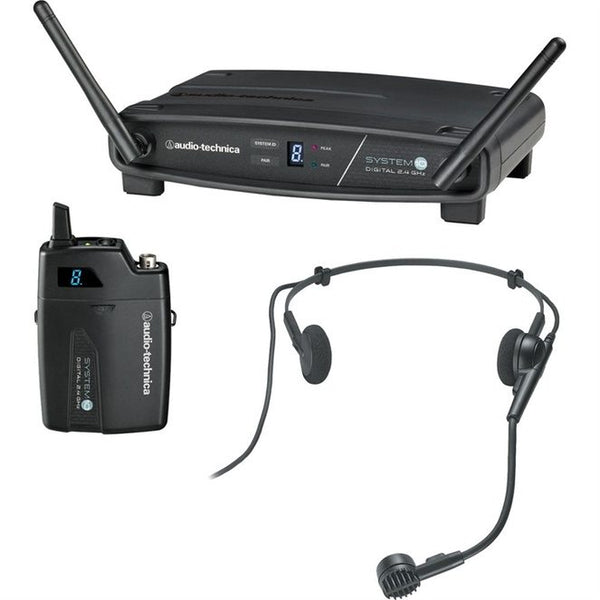

The ATW-1101/H System 10 from Audio-Technica is a digital wireless headworn microphone solution for drummers, keyboardists, dancers, instructors and others that require the use of their hands during performance. The set includes the ATW-R1100 digital receiver, the ATW-T1001 UniPak pocket transmitter and the PRO 8HEcW headworn microphone. It uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously. The PRO 8HEcW dynamic headworn microphone is designed to offer accurate, close range capture of an individual voice. The cushioned headband is designed to fit comfortably on your head and it can be worn on either the left or right side. The capsule features a hypercardioid polar pattern that promotes isolation of the vocal source by rejecting outside sound from floor monitors, drum sets, crowd noise, etc. This lends to consistent sound quality and high gain before feedback. The mic is fitted with a windscreen to filter out pops from breath and wind noise, and it has a dynamic Hi-ENERGY neodymium element that does not require phantom power. It has a 1.4 m cable that terminates with a locking 4-pin connector which plugs into the ATW-T1001 UniPak pocket transmitter. The ATW-1101/H wireless system is engineered to quickly find the best signal possible, utilising an automatic frequency selection function that chooses open bands for you when you “pair” your transmitter with the receiver. Also designed to combat interference, the ATW-1101/H uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver’s dual antennas depending on which is picking up the best signal integrity. Key Features Balanced XLR output and unbalanced 1/4″ output on receiver allows for connection to balanced microphone level inputs or unbalanced aux level inputs on mixers and sounds systems Flexible, pivoting boom allows mic to be worn on left or right side Headband cushions for support and comfort Level controls on transmitter and receiver Pair indicator illuminates on receiver when synced with transmitter AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping Product Features PRO 8HEcW Hypercardioid Headworn Mic ATW-T1001 UniPak Transmitter ATW-R1100 Digital Receiver Use Up To 8 Systems Simultaneously Digital 24-bit/48 kHz Wireless System Specifications Operating Frequencies 2.4 GHz ISM band Dynamic Range >109 dB (A-weighted), typical Total Harmonic Distortion <0.05% typical Operating Range 30 m typical Operating Temperature Range 0 to 40° C Frequency Response 20 Hz to 20 kHz Audio Sampling 24 bit, 48 kHz Receiver Receiving System Diversity (frequency/time/space) Output Connections 1x XLR, balanced1x 1/4" (6.3 mm), unbalanced Maximum Output Level Balanced: 0 dBVUnbalanced: +6 dBV Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A, centre positive, switched mode external power supply Dimensions 190.0 x 46.2 x 128.5 mm Weight 290 g Transmitter RF Output Power 10 mW Spurious Emission Following federal and national regulations Input Connections 1x 4-pin locking connectorWiring:Pin 1: GNDPin 2: INST INPUTPin 3: MIC INPUTPin 4: DC BIAS +9V Batteries 2x 1.5V AA (not included) Battery Life >7 hours (alkaline) Dimensions 70.2 x 107 x 24.9 mm Weight 100 g, without batteries Microphone Element Dynamic Polar Pattern Hypercardioid Frequency Response 200 Hz – 18 kHz Open Circuit Sensitivity -55 dB (1.7 mV) re 1V at 1 Pa Impedance 600 ohms Connector Locking 4-Pin HRS connector Cable Length 1.4 m Dimensions 120 mm, headset, nominal at widest point80.5 mm, flexible boom20.4 mm, microphone diameter Weight 60 g In The Box PRO 8HEcW – Headworn Hypercardioid Dynamic Mic ATW-T1001 System 10 Digital UniPak Transmitter ATW-R1100 System 10 Digital Wireless Receiver Large Foam Windscreen for Headworn Microphone Small Foam Windscreen for Headworn Microphone AT8439 – Clothing Clip Power Supply
