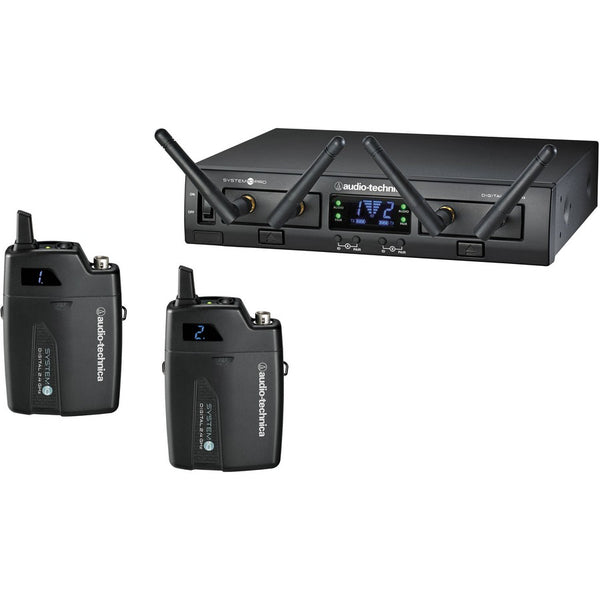

ATW1311 Digital Wireless Mic System DUAL UniPak™ 2.4 GHz

Regular price $1,390.00

Tax included.

10 Automatically Selectable Frequencies

Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

Operates in the 2.4 GHz range – completely free from TV interference

Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility

Up to five chassis (ten receiver units) can be linked and used simultaneously

Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations

Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status

Automatic frequency selection for seamless, interference-free operation

Extremely easy operation with instantaneous channel selection, sync, and setup

Three levels of diversity assurance: frequency, time & space

Ground-lift switch helps eliminate audible hum caused by ground loops

The ATW-T1006 Boundary Microphone/Transmitter and the ATW-T1007 Microphone Desk Stand Transmitter can be paired with any System 10 or System 10 PRO digital wireless receiver and are available separately


Operating Frequencies 2.4 GHz ISM band
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Range 60 m Open range env. with no interfering signals
Operating Temperature Range 0° C to +40° C Battery performance may be reduced at very low temperatures
Frequency Response 20 Hz to 20 kHz
Depending on microphone type


Receiving System Diversity (frequency/time/space)
Output Connectors Remote Receiver Connector: RJ45
Link Connector: RJ12
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions 209.8 mm W x 44 mm H x 169.3 mm D
Net Weight 940 grams
Accessory Included Power supply
Accessories Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet


RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries Two 1.5V AA not included
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 70.2 mm W x 107.0 mm H x 24.9 mm D
Net Weight 100 grams without batteries
