40Hz-20kHz HPF 10dB Pad 48V

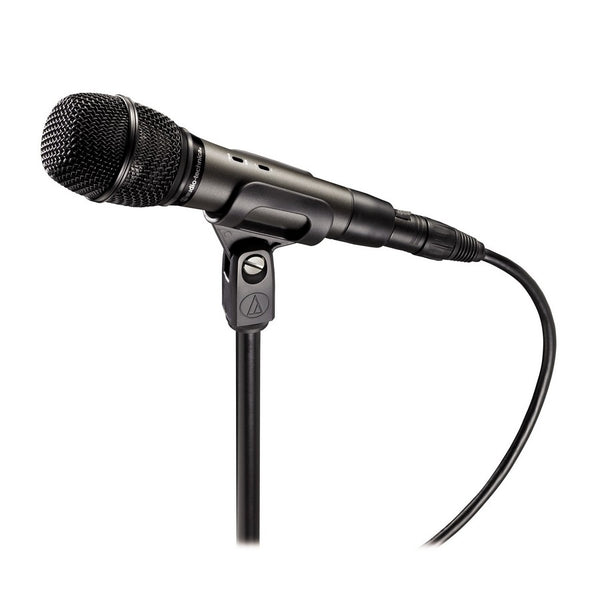

The new Artist Series vocal condenser microphone is tailored for exacting detail and high-fidelity vocal reproduction. With a condenser design for studio-quality performance, the ATM710 delivers remarkable clarity. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off position that reduces the microphone's sensitivity to popping in close vocal use. The ATM710 is also equipped with a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability. The microphoneâs cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
Excels in venues with controlled stage volume or in-ear monitoring
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Superior anti-shock engineering for low handling noise
Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
Condenser design for studio-quality performance
Integral 80 Hz HPF switch and 10 dB pad
Corrosion-resistant contacts from gold-plated XLRM-type connector
Rugged, all-metal design and construction for years of trouble-free use
ELEMENT Fixed-charge back plate permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 40-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY â40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 148 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 127 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 73 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 3.5 mA typical
SWITCHES Flat, roll-off; 10 dB pad
WEIGHT 274 g
DIMENSIONS 179.0 mm long, 50.0 mm diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8470 Quiet-Flex⢠stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
