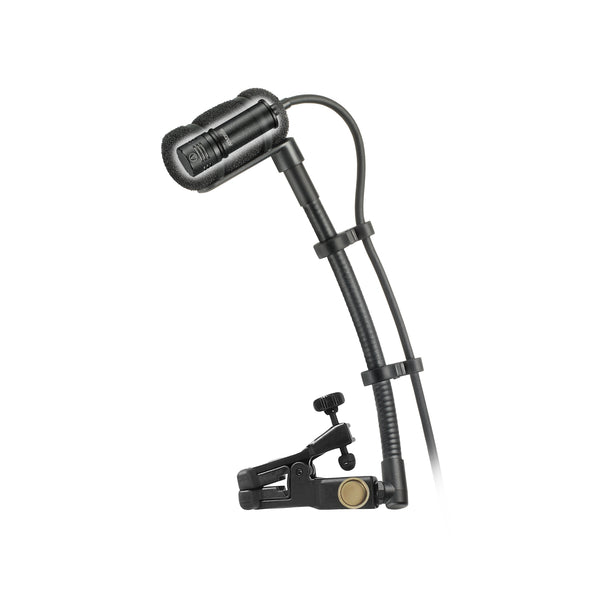

ATM350U Cardioid Condenser Clip on Instrument Microphone, less power module. 55â (1.4 m) permanently attached miniature cable terminated with a screw down 4-pin connector for use with Audio-Technica cH style body pack transmitters. Includes AT8491U Universal Clip on Mount, AT8490 5" Gooseneck, AT8468 Violin Mount (hook and loop fastener), and Protective Carrying Case. See ATM350U.
ELEMENT Fixed charge back plate permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 40-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY â49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 50 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 122 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 67 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 3.5 mA typical
SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 14.5 g
WEIGHT (POWER MODULE) 81.2 g
DIMENSIONS (MICROPHONE) 37.8 mm long, 12.2 mm diameter
DIMENSIONS (POWER MODULE) 92.9 mm long, 18.9 mm diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 4.0 m long (permanently attached to microphone), 3.2 mm diameter, 2-conductor shielded cable with TA3F-type connector
ACCESSORIES FURNISHED AT8542 power module; AT8418 UniMount® microphone instrument mount; AT8468 violin mount; soft protective pouch
ELEMENT Fixed charge back plate permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 40-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY â49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 50 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 122 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 67 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 3.5 mA typical
SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 14.5 g
WEIGHT (POWER MODULE) 81.2 g
DIMENSIONS (MICROPHONE) 37.8 mm long, 12.2 mm diameter
DIMENSIONS (POWER MODULE) 92.9 mm long, 18.9 mm diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 4.0 m long (permanently attached to microphone), 3.2 mm diameter, 2-conductor shielded cable with TA3F-type connector
ACCESSORIES FURNISHED AT8542 power module; AT8418 UniMount® microphone instrument mount; AT8468 violin mount; soft protective pouch
