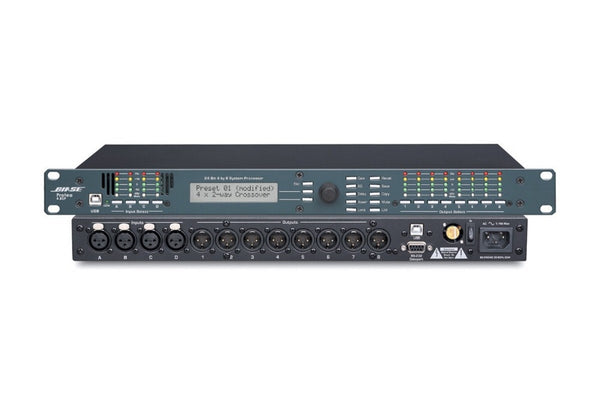

The 3.6SP is a 3-input by 6-output system processor; the 4.8SP is the 4-in by 8-out model. With active front panel controls, SP’s are at home in a dynamic, live sound environment. The USB inputs (front and rear) provide set-up via Protea™ Software, making SP’s a great choice for permanent installations. A backlit 2 x 20-character LCD
displays channel and function settings. Dedicated front panel controls provide access to all audio functions and system tools. There is a rear panel RS-232 port in addition to the USB ports. Advantages of using the software include greater preset capacity, and a very intuitive visual representation of theaudio routing and control process. A 1.8m USB-A to USB-B cable is provided.
3.6SP & 4.8SP Features:
Front Panel Parameter Control
Single rack space with XLR audio connections
Extremely intuitive user interface
Crossover, EQ, delay and limiter functions
Outputs assignable to any input
Front panel or PC programming and control with 4 levels of security
USB and RS-232 interface
Third-party control friendly
Balanced inputs and outputs
Linkwitz-Riley, Bessel and Butterworth filters 12, 18, 24 and 48dB/octave slopes
Parametric EQ: 1/64th to 4 octave range
682ms input and output delay (1,364ms total)
Limiter on each output
Individual input and output metering
Safety/Compliance: CE, FCC, RoHS
