Audio-Technica has bridged the gap between audio and IT with the first wired microphones that transmit audio and control data together over the Dante network protocol. A simple Ethernet connection allows the Network Microphone to communicate across an existing network of Dante-enabled devices and, with the micâs integrated, programmable user switch, control any of those devices at the push of a button.
Dante networking technology has become the standard in the professional audio industry. A true plug-and-play solution, Dante uses standard Internet protocols to distribute digital audio and control data with very low latency. Network Microphones exploit Danteâs advantages to provide a powerful audio solution thatâs easy to implement, use and expand.
A perfect fit for boardrooms and other meeting spaces, Network Microphones feature simple, inexpensive Ethernet connectivity, outstanding sound quality, a Red/Green LED status indicator and an integrated user switch to control anything from triggering a video camera pan/tilt to a roomâs lighting preset and much more. And since Dante can support up to 512 bidirectional audio channels, Network Microphones offer an easily scalable solution.

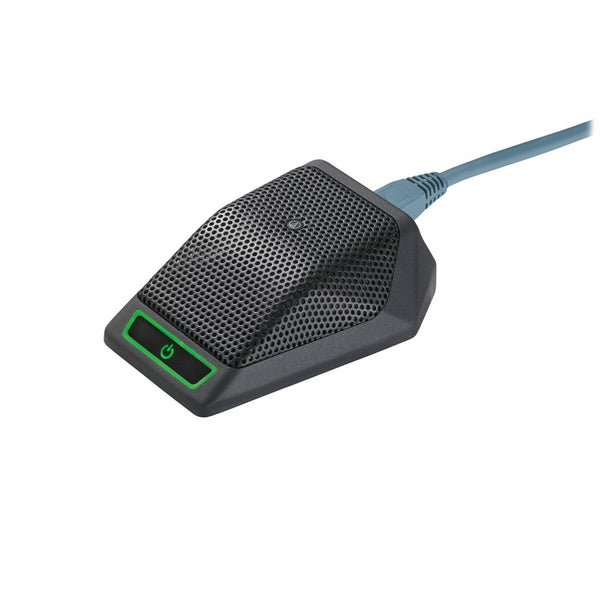

A true audio/IT convergence, the ATND971 boundary mic not only delivers the superior audio you would expect from Audio-Technica, with outstanding speech intelligibility and transparent sound quality, but it also transmits control data to communicate across a network of Dante-enabled devices. The integrated programmable user switch allows users to trigger a video cameraâs pan/tilt, recall lighting presets or control anything else on the network at the push of a button. And with a Red/Green LED the microphone can visually convey mute status, incoming phone calls or other creative visual effects utilizing a control system. The microphone plugs into the network via Ethernet cable â easy to install and operate.
Dante⢠is a trademark of Audinate Pty Ltd.
A digital Ethernet mic with Dante capabilities â an Audio-Technica innovation
Connects directly to network via Ethernet cable â no need for expensive audio cable or soldering
Integrated switch allows mic to communicate with â and control â other Dante-enabled devices within a network
Local or remote control of mic gain, low-cut filter and LED indicator
Red/Green LED indicator
UniGuard® RFI-shielding technology; UniSteep® filter
Powered by network PoE
Scalable across Danteâs 512 bidirectional audio channels
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Half-cardioid (cardioid in hemisphere above mounting surface)
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
MAXIMUM INPUT SOUND LEVEL 117 dB SPL, 1 kHz at 1% T.H.D.
SIGNAL-TO-NOISE RATIO 68 dB, 1 kHz at 1 Pa
POWER REQUIREMENTS PoE IEEE802.3af standard (Power consumption 1.5W)
SWITCHES Local Mode: Touch-sensitive capacitivetype user switch function: toggle (mute
on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB
Remote Mode: Low-cut and Gain via third-party software*
WEIGHT (MICROPHONE) 393 g
DIMENSIONS 110.0 mm maximum length, 89.5 mm maximum width, 35.8 mm maximum height
OUTPUT CONNECTOR RJ45
OPTIONAL INTERCHANGEABLE ELEMENTS UE-O omnidirectional (360°) UE-H hypercardioid (100°)
ACCESSORY FURNISHED Soft protective pouch
