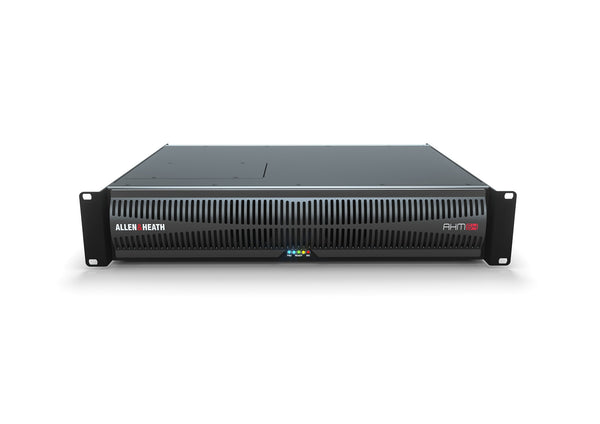

Allen and Heath Audio Matrix Processor

Regular price $5,990.00

Tax included.
AHM64 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi purpose venues, retail, theatres, cruise ships and sports venues. The AHM64 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software. A family of portable, rack-mountable or wall-mount audio expanders is available with a choice of proprietary point to point Layer-2 or Dante transport protocols.

• 64x64 processing matrix
• 12x12 local analogue I/O
• I/O Port for audio networking, up to 128x128
• Dante 96kHz 64x64 optional card (AES67 and DDM ready)
• 128x128 built-in SLink port for audio expansion
• 64 configurable processing outs – up to 64 mono/stereo zones
• 96kHz FPGA core with ultra-low latency
• Compatible with IP1, IP6, IP8 remote controllers
• 2x2 local GPIO plus networkable GPIO interface
• DC backup power supply
• System Manager software
• Custom Control app and editor
• 32 user profiles
• Integrated stereo / dual mono playback
• Event scheduler

Sound management tools
• 8x Automatic Mic Mixers
• AEC (Acoustic Echo Cancellation) – optional module
• ANC (Ambient Noise Compensation)
• Priority ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter and PEQ
