Neutrik - NL8MM - 8 pole speakON feedthrough adapter for cable extensions.

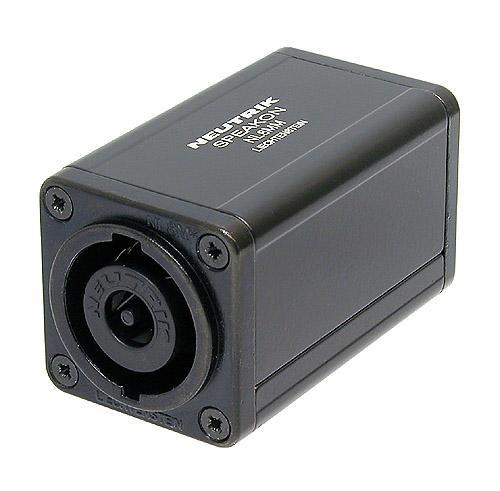

Neutrik NL8MM 8 Pole SpeakON Feedthrough Adapter

Regular price
$65.99
Sale price
$65.99
Unit price
per
Tax included.

8 pole speakON feedthrough adapter for cable extensions.

Technical Information

Product
Title NL8MM
Connection Type Adapter
Gender male
Electrical
Contact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 15 A rms continuous
Rated current per contact 30 A audiosignal, duty cycle 50 %
Rated voltage 250 V (Insulation)
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6 30 % GR)
Shell Polyamide (PA 6 30 % GR)
Environmental
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
