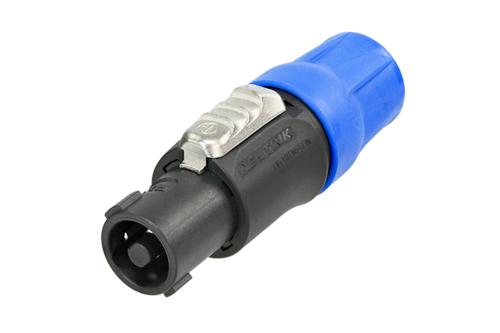

4 pole cable connector, chuck type strain relief.
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Up to 30 A rms current rating
- Reliable and robust, easy and fast to assemble
- Cable strain relief for 6 - 15 mm cable O.D.
- Accurate and dependable twist lock latching system "Quick Lock"
- Glass reinforced material for insert and housing, long-lasting and dependable
- User friendly latch design for easy handling
- Unique Neutrik chuck type strain relief
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Information
| Title |
NL4FC |
| Connection Type |
speakON |
| Gender |
female |
| Contact resistance |
≤ 3 mΩ (after lifetime) |
| Dielectric strength |
4 kVdc (peak) |
| Insulation resistance |
> 1 GΩ (after dampheat) |
| Rated current per contact |
30 A rms continuous |
| Rated current per contact |
40 A audiosignal, duty cycle 50 % |
| Rated voltage |
250 V ac |
| Attention |
speakON is NOT to be used as an AC mains or power supply connector! |
| Cable O.D. |
6 - 15 mm |
| Cable retention |
≥ 220 N (subject to cable O.D. and material) |
| Lifetime |
> 5000 mating cycles |
| Wiresize |
4 mm² |
| Wiresize |
12 AWG |
| Wiring |
screw type terminals or soldering |
| Locking device |
Quick Lock (latch) |
| Contact plating |
4 µm Ag |
| Contacts |
Brass (CuZn39Pb3) |
| Insert |
PBTP 20 % GR |
| Locking element |
Zinc diecast (ZnAl4Cu1) |
| Shell |
Polyamide (PA 6 30 % GR) |
| Strain relief |
Polyacetal (POM) |
| Flammability |
UL 94 V-0 |
| Solderability |
Complies with IEC 68-2-20 |
| Temperature range |
-30 °C to +80 °C |
