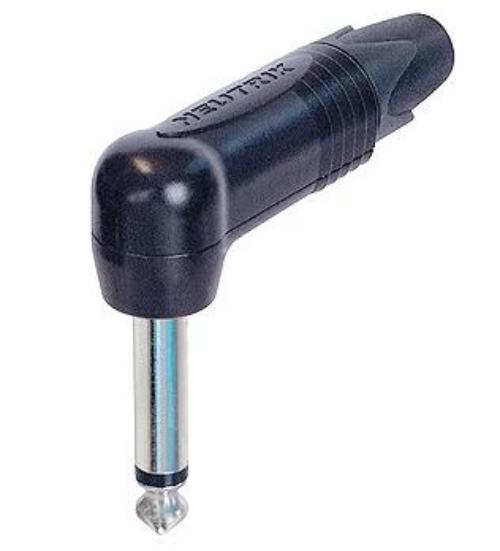

Neutrik NP2RX-BAG 2 Pole 1/4" Right Angle Professional Headphone Plug - Nickel/Black

Regular price $14.34

Tax included.

2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell.

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits

  • All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Technical Information

Product
Title NP2RX-BAG
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM)
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
