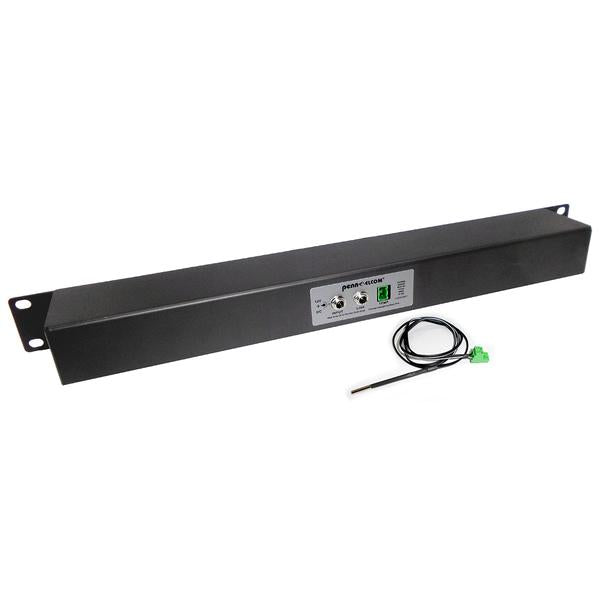

This 1U Rack Mountable Digital Thermostatic Controller can be used to monitor and control all of our low noise DC fan units: CoolRaC, FT01-Q, FT02-Q and FP02-Q-3U.
The digital thermostat module features: Continuous rack temperature monitoring, settable fan run temperature control with LED indicator and over temperature alarm.
Technical Specifications
• Continuous temperature monitoring
• Set & forget fan control
• Fan run LED indicator
• Over temperature alarm
• 12V DC Input & Output 2.1 Sockets
• Switched 12V DC at Maximum of 4A
• Temperature Sensor Input Socket
• Plug-in PTC sensor 1m / 39" lead
• Dimensions (OD): 44.5mm x 483mm x 70mm
The digital thermostat module features: Continuous rack temperature monitoring, settable fan run temperature control with LED indicator and over temperature alarm.
Technical Specifications
• Continuous temperature monitoring
• Set & forget fan control
• Fan run LED indicator
• Over temperature alarm
• 12V DC Input & Output 2.1 Sockets
• Switched 12V DC at Maximum of 4A
• Temperature Sensor Input Socket
• Plug-in PTC sensor 1m / 39" lead
• Dimensions (OD): 44.5mm x 483mm x 70mm
| Part No. | FT-DTC |
| Finish | Black |
| Description | Digital Thermostatic Controller |
| Weight | 1kg |
