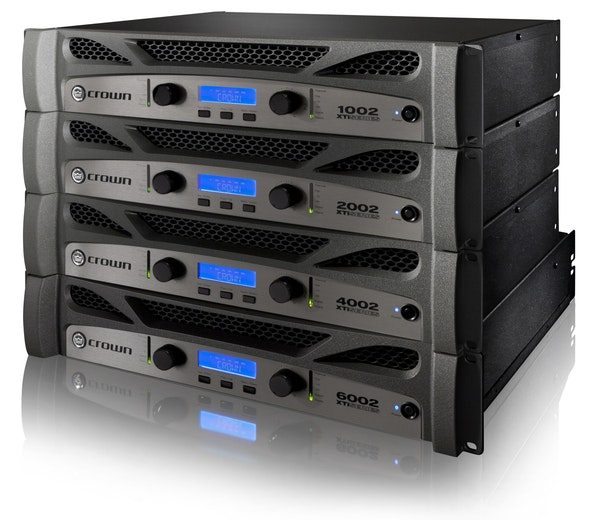

There’s no debate – when you choose Crown’s XTi 2 Series, you’re choosing one of the most powerful and innovative amplifiers on the market today. That’s because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
– Peak Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack,
– Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
– 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
– New system monitoring provides software visibility of AC line voltage and power supply temperature
– Integrated cast-aluminum handles for easy handling and enhanced durability
– Locking power cord clip provides a secure connection between the amplifier and power cord
– Updated HiQnet Band Manager and System Architect control software
– Increased number of presets to a total of 30; 29 of which are user definable
Sensitivity (for full rated power at 4 ohms):
(at 1 watt, 20 Hz to 20 kHz): +0 dB, –1 dB
Signal-to-Noise Ratio (below rated 1kHz
power at 8 ohms):
XTi 1002/2002/4002: 100 dB (A weighted),
XTi 6002: 103 dB (A weighted)
Total Harmonic Distortion (THD): < 0.5%
Damping Factor 20 Hz to 1 kHz: > 500
Crosstalk (below rated power):
20 Hz – 1 kHz: > 70 dB
Input Impedance (nominal):
20k ohms balanced, 10k ohms unbalanced
Maximum Input Signal: +22 dBu typical
AC Line Voltage and Frequency Configurations:
100VAC, 120VAC, 220-240VAC 50/60Hz
AC Line Current (120 VAC amplifier playing
1/8 power pink noise into 4 ohms per ch):
XTi 1002: 6.8A; no more than 38W at idle,
XTi 2002: 8.3A; no more than 38W at idle,
XTi 4002: 10.5A; no more than 38W at idle,
XTi 6002: 15.3A; no more than 180W at idle
C to 40o
C at 95% relative humidity
Signal Indicator: Green LED, one per channel,
illuminates when a very low-level signal
is present at input (may be used for
troubleshooting cable runs).
–10 Indicator: Green LED flashes when output
signal exceeds –10 dB below clip.
–20 Indicator: Green LED flashes when output
signal level exceeds –20 dB below clip.
Ready Indicator: Green LED, one per channel,
illuminates when the amplifier is ready to
Clip Indicator: Red LED, one per channel,turns on
at the threshold of audible distortion.
Temp Indicator: Red LED, one per
channel, illuminates under excessive
Power Indicator: Blue LED illuminates when the
amplifier has been turned on and has power.
Level: Two front-panel rotary level controls,
one for each channel.
Power Switch: On/Off switch applies AC power
to the amplifier.
Sel/Prev/Next Buttons: Three buttons near the
LCD screen that are used to access menu
items and front panel lockout.
LCD Screen: Backlit liquid crystal display that
shows preset and processing status.
Input EQ: 6 parametric filters per channel
with adjustable Q, ±15 dB boost/cut. Also
adjustable high and low shelving filters. This
8-filter EQ section can be bypassed.
Crossover Filters: Highpass and Lowpass per
channel. Butterworth 6/12/18/24 dB per
octave. Linkwitz-Riley 24/48 dB per Octave.
Also includes ± 15 dB bandpass gain and
Output EQ: 8 parametric filters per channel with
adjustable Q, ±15 dB boost/cut. This 8-filter
EQ section can be bypassed.
Delay: For signal alignment of driver;
50 ms of total delay.
SubHarmonic Synth: Takes the low-frequency
content ofthe input signal and “synthesizes”
a new signal that is the same as the input
signal but one octave lower. The new
synthesized signal is then mixed with the
original signal to create the effect. New:
Users now have control over frequency, gain,
and filter type.
™ Plus Limiter: User defeatable limiter
that allows users to control Threshold,
Attack, and Release times.
Presets: 30 total presets, 29 of which
Input Connectors: XLR, one per channel)
Link/Out Connector: Loop-thru signal from input
connector for linking another amplifier, one
Output Connectors: Two Neutrik®
NL4MP output connectors. Channel-1 Speakon®
is wired with Ch. 1 and Ch. 2 outputs for use
with optional single 4-conductor cable. Two
binding post outputs (in parallel with Speakon®
HiQnet™ USB Connector: Type B, connects to
Front Panel: Cast-aluminum
Cooling: Proportional speed fan with
XTi 1002/2002/4002: 19” (W) x 3.5” (H)
x 12.25” (D),
XTi 6002: 19” (W) x 3.5” (H) x 16.2” (D)
XTi 1002/2002/4002: 18.5 lbs (8.4kg),
XTi 6002: 24.0 lbs (10.9kg)
XTi 1002/2002/4002: 21.5 lbs (9.8kg),
XTi 6002: 30.0 lbs (13.6kg)
