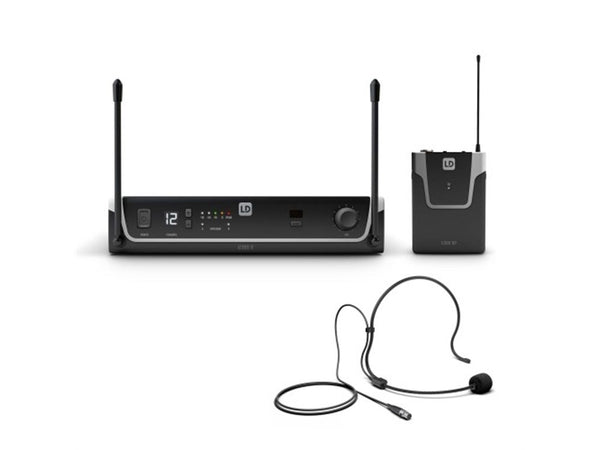

Developed in Germany, the LD Systems U306 Wireless Microphone System with Bodypack and Headset deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions frequency bands: 584–608 MHz, 655–679 MHz, Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.
U300 transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300 receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.
U300-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500-series replaceable heads. U300 instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.
- Diversity UHF wireless system with FM technology.
- 12 selectable channels.
- 100 m transmission range in ideal conditions.
- Simultaneous operation of up to 6 systems.
- ASC infrared transmitter and receiver syncing.
- Pilot tone squelch.
- 10 h transmitter operation on two AA batteries.
- Metal housing.
|LDU306R – LD Systems U306 R|
|Product type||Wireless Microphone System Accessories|
|Frequency response||25 – 16,000 Hz|
|Antenna inputs||2 x fixed|
|Transmission optimization||Pilot tone|
|THD||< 0.3 %|
|Signal-to-noise ratio||104 dB|
|Controls||ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volume|
|Indicators||5 LED VU meters, Antenna A/B , LC display|
|Audio output, balanced||XLR|
|Operating voltage||12 V DC – 18 V DC (500 mA), external power supply|
|Audio output, unbalanced||6.3 mm jack, switchable unbalanced output level|
|Accessories (included)||2 x AA battery, Audio cable, Power supply|
|Max. output level||+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu|
|Other features||IR frequency synchronisation|
|LDU306BP – LD Systems U306 BP Bodypack Sender|
|Inputs||Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)|
|Rated HF output power||10 mW|
|Controls||Gain (3-way switch), Power On/Off|
|Indicators||ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)|
|Operating voltage||2 x AA battery|
|Operating time||> 10 hrs.|
|Other features||Belt clip, Pilot Tone|
|LDWS100MH1 – LD Systems WS 100 MH 1 Headset|
|Frequency response||20 – 20.000 Hz|
|Nominal impedance||680 Ohm(s)|
|Phantom power requierements||5 V|
|Microphone input||Mini-XLR (3-pin, female)|
|Accessories (included||Foam windscreen|
