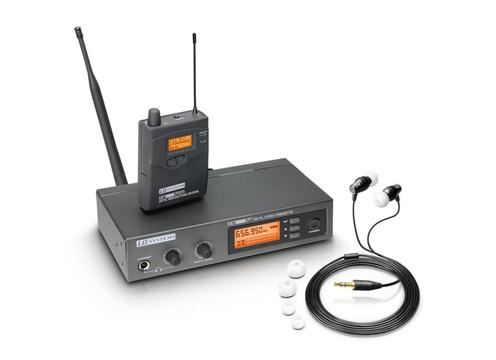

The new LD Systems MEI 1000 G2 B 6 is a In-Ear Monitoring-System with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 655 - 679 Mhz frequency band.
Switchable mono, stereo, and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60 Hz – 16 kHz, a high S/N ratio, and low THD. The LD MEI 1000 G2 permits simultaneous operation of up to 5 systems.
The earphones are very comfortable to wear, and the multifunctional display on the receiver shows all relevant system information. With high quality batteries, it is possible to attain operating times of 12 hours and more. A 19" rackmount kit and a rugged ABS plastic carrying case complete the MEI 1000 G2 package.
| Product type: | In-ear Monitoring, In-ear Monitoring Accessories |
|---|---|
| Type: | Transmitters, Receivers |
| Transmission frequency range: | 655 - 679MHz |
| Channels: | 96 (8 groups of 12 channels), 2 x 96 (8 groups of 12 channels) |
| Transmission method: | FM, stereo |
| Frequency response: | 60 - 16000Hz |
| Rated HF output power: | 10 mW |
| THD: | < 1 % |
| Signal-to-noise ratio: | 85dB |
| Audio output: | 3.5 mm TRS |
| Max. audio output level: | 100mW |
| Inputs: | 2 |
| Input connectors: | XLR, 6.3 mm jack |
| Input impedance (kOhms): | 14kOhm |
| Indicators: | low battery, LC display, Power |
| Operating time: | > 12 hrs., battery-dependent |
| Antenna connector: | BNC |
| Controls: | Power, Escape, volume, pad, input level, volume headphone, Set, up, down |
| Operating voltage: | 12 - 18 V DC, 2 x 1.5 V AA |
| Features: | incl. batteries |
| Width: | 200mm, 65mm |
| Height: | 44mm, 90mm |
| Depth: | 96mm, 24mm |
| Weight: | 1,2kg, 0,1kg |
| Accessories (included): | Antenna, Headphones, Power supply, Batteries |
