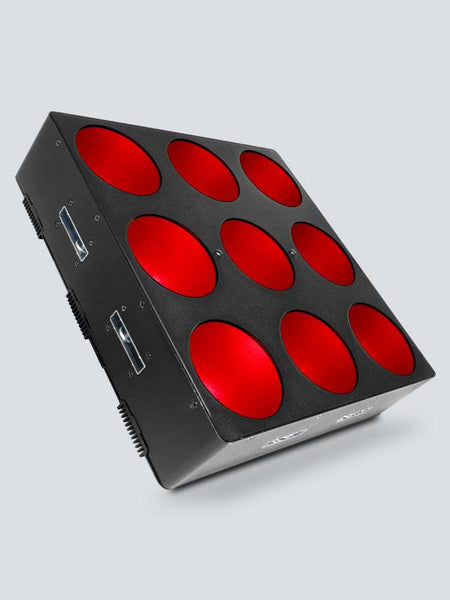

CORE™ 3x3 combines a pixel-mapping effect and a powerful LED wash. Powered by nine RGB LEDs with chip-on-board (COB) technology, it utilizes a unique reflector cup to produce large pixels of light and create intriguing sweeping and chasing effects. You can easily combine multiple units using built-in coffin locks to construct an impressive array capable of large scale animations and chases.
FEATURES
- Compact, LED panel designed for use as a pixel mapping effect, blinder or wash light
- Easily trigger built-in automatic and sound activated programs for a stunning show in seconds
- Produce a full spectrum of light with excellent color mixing using COB technology
- Quickly and securely connect multiple fixtures together with built-in coffin locks
- Create animations and video effects with individual LED control
- Withstand the harshness of traveling from gig to gig with a robust housing
- Generate complex looks with ease using ShowXpress™ Pixels
- Achieve flicker-free video operation with high-frequency LED dimming
- Save time running cables and extension cords by power linking multiple units
- Silent operation due to built-in fan control
- Sound-activated programs dance to the beat of the music
- Generate a synchronized show in master/slave mode with easy access to built-in automated programs
SPECIFICATIONS
- DMX Channels: 3, 5, 9, 27, or 31
- DMX Connectors: 3-pin
- Light Source: 9 (tri-color) 9W (500mA x 3) LEDs 50,000hrs
- Strobe Rate: 0 - 20Hz
- Beam Angle: 47°
- Field Angle: 73°
- Illuminance: 1,025 lux @ 2m
- Power Linking: 3 units @ 120V; 7 units @ 230V
- Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
- Power and Current: 226W, 1.9A @ 120V 60Hz
- Power and Current: 226W, 0.9A @ 230V 50Hz
- Weight: 13.6lbs (6.2kg)
- Size: 6.2 x 13.6 x 13.6in (156 x 344 x 344mm)
- Approvals: CE
